Age pyramid - custom more than one color and data for each sex

  • October 23, 2025
  • 1 reply
  • 15 views

Hello,

I want to create a new age pyramid, but where we distinguish for example nationality (CH and foreign) among men and women. This means I need to add to sets of data and distinguish with two colors. I tried to follow a similar example given in the Widget Tricks Age Pyramid with custom HTML/CSS – Codelibrary, but I have no clue how to solve this.

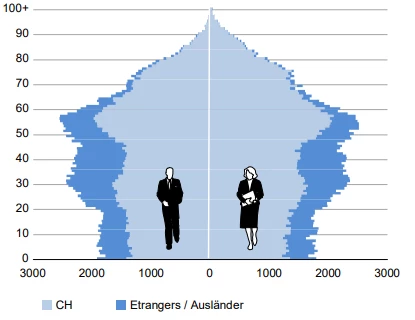

This is what it should look like in the end :

If you have already tried this of have an idea, I would be really thankful.

All the best,

Eric

1 reply

frederic.passaniti
Huwise Team

Hi, sure,

You can add another field in the group_by to add another dimension for the analysis.





Here is the code library pyramid with 3 dimensions :

https://fpassaniti.opendatasoft.com/pages/test-pyramide-a-3-dimensions/



<ods-dataset-context
context="ctx"
ctx-dataset="north-carolina-population-overview-2010"
ctx-domain="userclub">
<div ng-init="variables = {'index' : {}, 'max' : {}, 'displayvalues' : false};
agefield = 'age';
genderfield = 'sex';
racefield = 'race';
valuefield = 'value'">
<div class="row">
<h3>Age pyramid for the state of North Carolina, USA (by Gender and Race)</h3>
<div ods-adv-analysis="analysis"
ods-adv-analysis-context="ctx"
ods-adv-analysis-select="sum({{valuefield}}) as pyramidnumber"
ods-adv-analysis-group-by="{{genderfield}}, {{agefield}}, {{racefield}}"
ods-adv-analysis-order-by="{{agefield}}">
<div ods-adv-analysis="totalbygender"
ods-adv-analysis-context="ctx"
ods-adv-analysis-group-by="{{genderfield}}"
ods-adv-analysis-select="SUM({{valuefield}}) as totalgender"
ods-adv-analysis-order-by="{{genderfield}}">
<div ods-subaggregation="analysis"
ods-subaggregation-serie-maxcount="MAX(pyramidnumber)">
{{ variables.max['pyramidnumber'] = results[0].maxcount ; "" }}
<div ng-repeat="result in analysis">
<div
ng-init="variables.index[result[agefield]] = variables.index[result[agefield]] || {};
variables.index[result[agefield]][result[genderfield]] = variables.index[result[agefield]][result[genderfield]] || {};
variables.index[result[agefield]][result[genderfield]][result[racefield]] = result.pyramidnumber">
</div>
</div>
</div>
<!--- the pyramid --->
<div class="pyramid-line">
<!--- left side : title and total --->
<div class="pyramid-side pyramid-side-left">
{{totalbygender[0][genderfield]}} (total : {{ totalbygender[0].totalgender | number }})
</div>
<!-- middle : title --->
<div class="pyramid-middle">Age</div>
<!--- right side : title and total --->
<div class="pyramid-side pyramid-side-right">
{{totalbygender[1][genderfield]}} (total : {{ totalbygender[1].totalgender | number }})
</div>
</div>

<!-- Legend -->
<div class="pyramid-legend">
<div class="legend-item">
<div class="legend-box white"></div>
<span>White</span>
</div>
<div class="legend-item">
<div class="legend-box other"></div>
<span>Other</span>
</div>
</div>

<div class="pyramid-line" ng-repeat="i in variables.index|keys">
<!--- left side : bars --->
<div class="pyramid-side pyramid-side-left">
<div class="fond_bar" style="width: 100%">
<div class="bars-stacked">
<div
class="bar bar-white"
style="width : {{ variables.index[i][totalbygender[0][genderfield]]['White']*100/variables.max['pyramidnumber'] || 0 }}%"
></div>
<div
class="bar bar-other"
style="width : {{ variables.index[i][totalbygender[0][genderfield]]['Other']*100/variables.max['pyramidnumber'] || 0 }}%"
></div>
</div>
</div>
<!--- left values to be displayed when the switch button is on --->
<div class="pyramid-value left">
<span ng-if="variables.displayvalues == true">
W: {{variables.index[i][totalbygender[0][genderfield]]['White'] | number}} |
O: {{variables.index[i][totalbygender[0][genderfield]]['Other'] | number}}
</span>
</div>
</div>
<!--- middle : the different age classes titles --->
<div class="pyramid-middle">{{ i }}</div>
<!--- right side : bars --->
<div class="pyramid-side pyramid-side-right">
<div class="fond_bar" style="width: 100%">
<div class="bars-stacked">
<div
class="bar bar-white"
style="width : {{ variables.index[i][totalbygender[1][genderfield]]['White']*100/variables.max['pyramidnumber'] || 0 }}%"
></div>
<div
class="bar bar-other"
style="width : {{ variables.index[i][totalbygender[1][genderfield]]['Other']*100/variables.max['pyramidnumber'] || 0 }}%"
></div>
</div>
</div>
<!--- right values to be displayed when the switch button is on --->
<div class="pyramid-value right">
<span ng-if="variables.displayvalues == true">
W: {{variables.index[i][totalbygender[1][genderfield]]['White'] | number}} |
O: {{variables.index[i][totalbygender[1][genderfield]]['Other'] | number}}
</span>
</div>
</div>
</div>
</div>
</div>
</div>

<!--- switch button to display values --->
<div class="row">
<div class="col-sm-6">
<div class="pyramid-switch">
<p>Display values:</p>
<label class="switch">
<input
class="switch-input"
type="checkbox"
ng-model="variables.displayvalues"
ng-true-value="true"
ng-false-value="false"
ng-checked="variables.view == true"/>
<div class="switch-button">
<span class="switch-button-left">OFF</span>
<span class="switch-button-right">ON</span>
</div>
</label>
</div>
</div>
<div class="col-sm-6"></div>
</div>
</div>
</ods-dataset-context>
